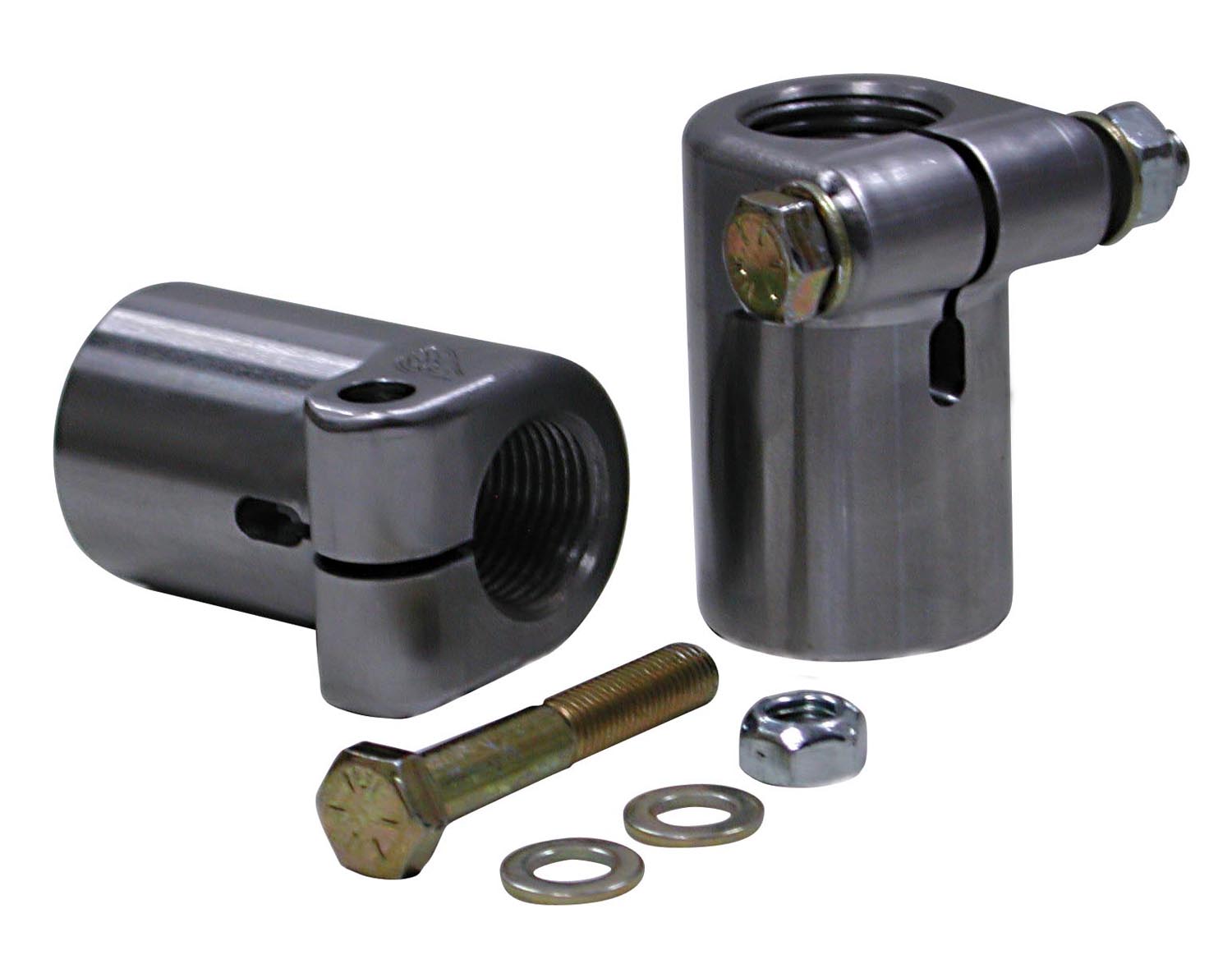

15087 - LH ROD END RECVR 1 1/4-12RND

Material Specs: 4140 N Chromoly Steel
Includes Grade 8 Bolt, metal locknut and 2 AN washers
Welds into stock tubing sizes
Cinch bolt maintains high clamping force

Round Rod End Receivers
RH Thread Part #15120151101510015090150801509215082
LH Thread Part #15125151151510515095150851509715087

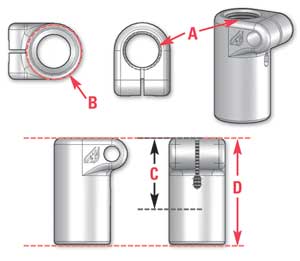

Thread Size (A)1/2" - 205/8" - 183/4" - 167/8" - 141 1/4" - 127/8" - 141 1/4" - 12
Outside Diameter (B).745".870"1.120"1.370"1.870"1.260"1.760"
Thread Length (C)1.2"1.3"1.4"1.5"1.7":1.5"1.7"
Overall Length (D)1.813"1.938"2.125"2.250"2.563"2.250"2.563"
Nominal Tube Size0.875" OD1.000" OD1.250" OD1.500" OD2.000" OD1.500" OD2.000" OD
Recommended Tube Wall Thickness0.065"0.065"0.065"0.065"0.065"0.120"0.120"

***Note: 0.065" receivers may be turned down to fit other tubing sizes. We recommended that 0.120" receivers not be turned down.***
